QM Shower Pan Kit 80″ with a 58″ Lotus Linear Drain Flange Edge Side Outlet in Polished

Easy installation: Create a perfect shower floor quickly and easily. Saves time and labor. All our kits include everything you need to install.

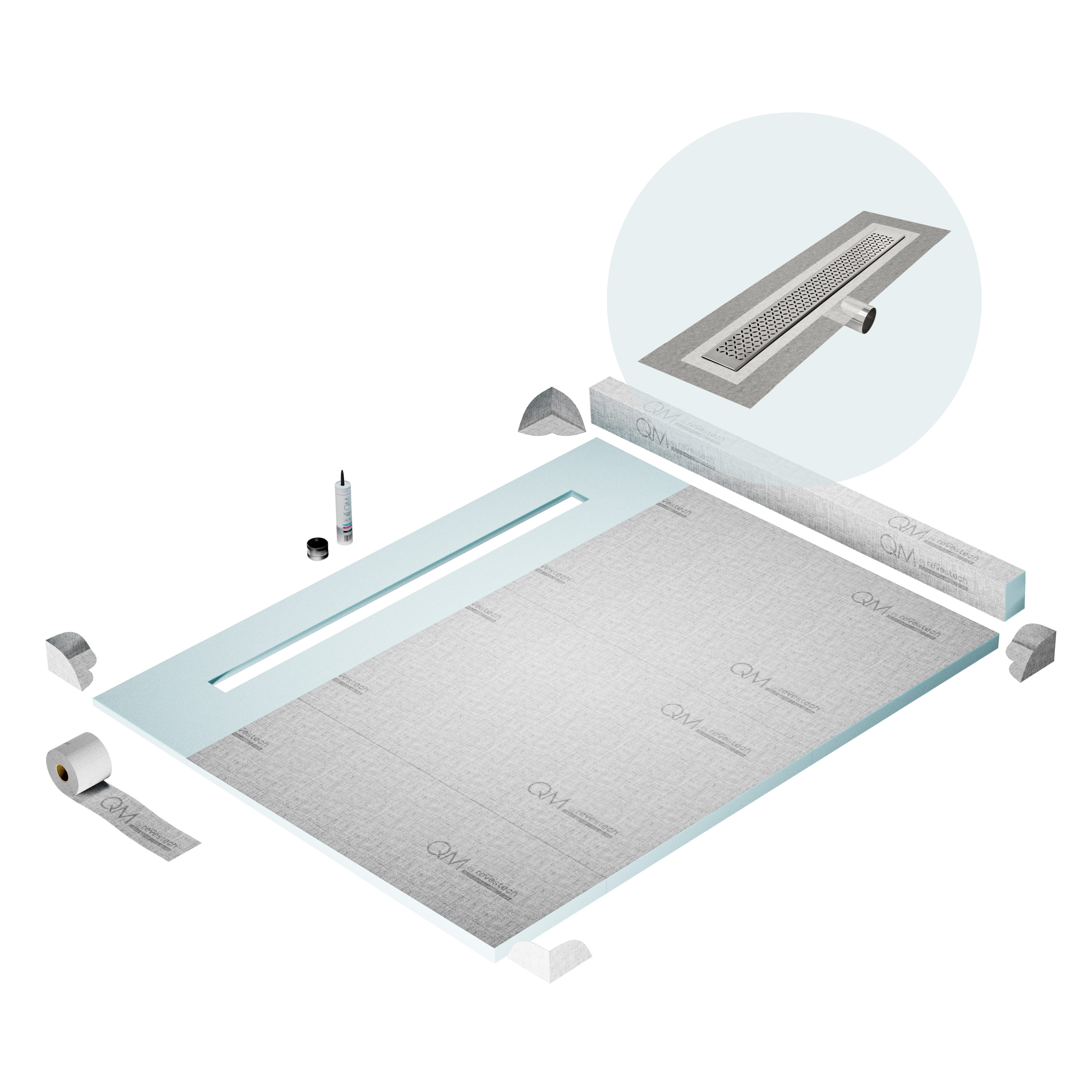

Linear Drain Kits Include:– Waterproofed Shower Pan in your desired size
– Drain Support
– Side Outlet Linear Drain Flange Edge (with drain base, grate, and lifting key), for more details about the drain, visit here
– Curb (60″ x 3.5″) with Superdry Integrated Waterproofing (Note: Curbless Kit not included)
– Superdry Waterproof Band (5″ x 16′) for waterproofing joints between horizontal and vertical surfaces
– Inside Superdry Waterproof Corners (2 sets) for reinforcing inside shower corners
– Outside Superdry Waterproof Corners (1 set) for reinforcing outside shower corners
– QM Bond Sealant: Fast-curing, high-modulus one-component PU adhesive for a wide variety of bonding applications
– 2″ Shielded pipe Coupling that allows you to make pipe connections to Cast Iron, plastic, steel, copper drain waste

Please note, if you are installing a Linear Drain Shower Pan Kit and the waste pipe is coming from the wall above the subfloor, you will need to add two Flat Shower Panel Risers and one or two Curbs (60″ x 5″), which is the ideal size when a flat shower floor is needed.
Made of 100% Post-Consumer Recycled PET (Polyethylene terephthalate)

It is strong, lightweight, chemically stable, UV resistant, and suitable for interior and exterior use. Compressive strength of 140 psi (pounds per sq ft).
Integrated with SUPERDRY50 Waterproofing

Flexible membrane for waterproofing shower trays, walls, and floors. Our membrane is 100% waterproof and solves humidity problems in other less reliable applications, such as rubber paint or waterproof cement. Additionally, it is anti-bacterial and antimould, favoring completely dry environments to avoid the proliferation of microorganisms.
Green Building Commitment

Committed to sustainable construction, avoiding environmental impact, and ensuring a healthy environment. QM shower pan and waterproofing membranes are 100% recyclable.
Additional Features:

– The board can be tiled directly and immediately.
– Adjustable size can be shortened to the desired length and width. Broader Drain support gives significant flexibility to accommodate shower pan with existing pipe location.
– Suitable for any subfloor, whether it’s concrete or wood. Therefore suitable for new or renovation projects.
